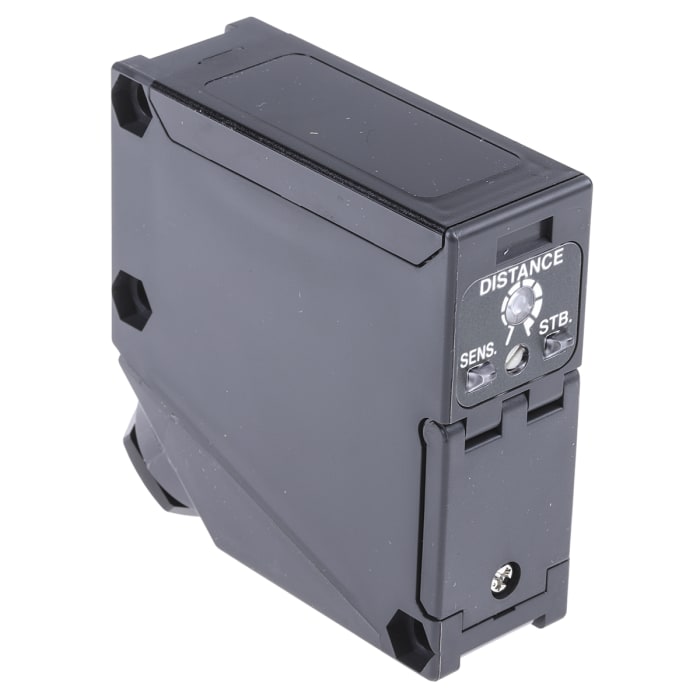

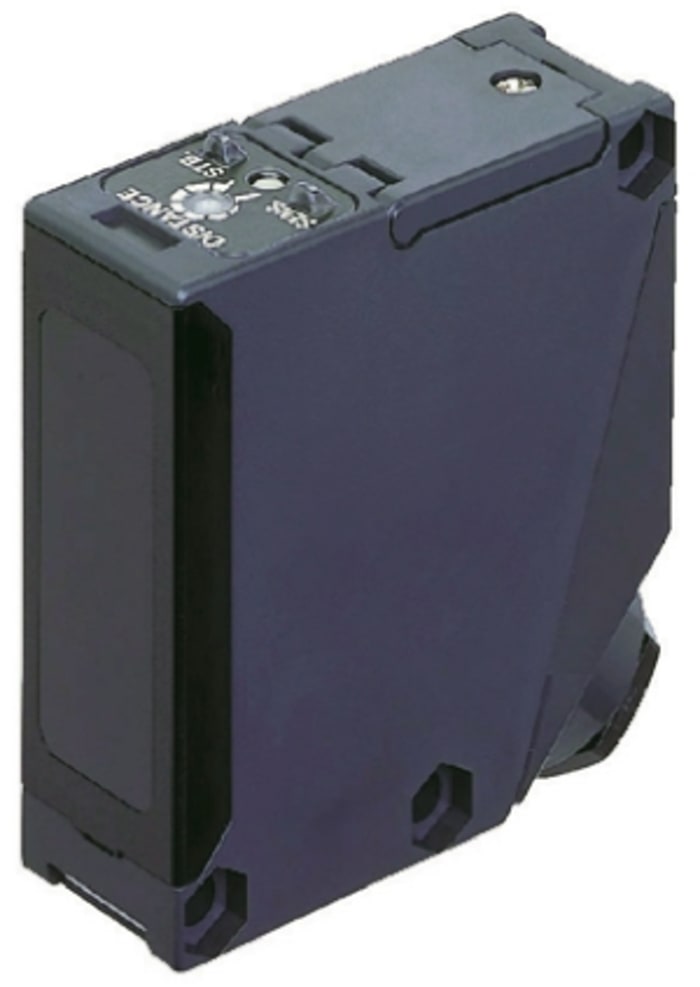

Panasonic Diffuse Photoelectric Sensor, Block Sensor, 100 mm → 2.5 m Detection Range
Technical documents
Specifications
Brand
PanasonicSensor Style
Block
Detection Type
Diffuse
Detection Range
100 mm → 2.5 m
Output Type
Relay
Electrical Connection
4 Terminal Screw
Maximum ac Voltage
250V
Maximum dc Voltage
30V
Terminal Type
Screw
Light Source
Infrared
IP Rating
IP67
Maximum Current
3 A
Response Time
=20 ms
Minimum Operating Temperature
-20°C
Series
EQ500
Housing Material
ABS
Maximum Operating Temperature
+55°C
Product details
EQ500 — Triangulation Light Sensor, 2.5 m
Wide range of 250 cm
Background fade in accordance with triangulation principle
Reliable object detection, independent of colour, shape and material
Compact design
Universal voltage version
Stock information temporarily unavailable.
Please check again later.
€ 458.30
Each (ex VAT)
1
€ 458.30
Each (ex VAT)
1
Buy in bulk
| quantity | Unit price |
|---|---|
| 1 - 2 | € 458.30 |
| 3+ | € 446.59 |
