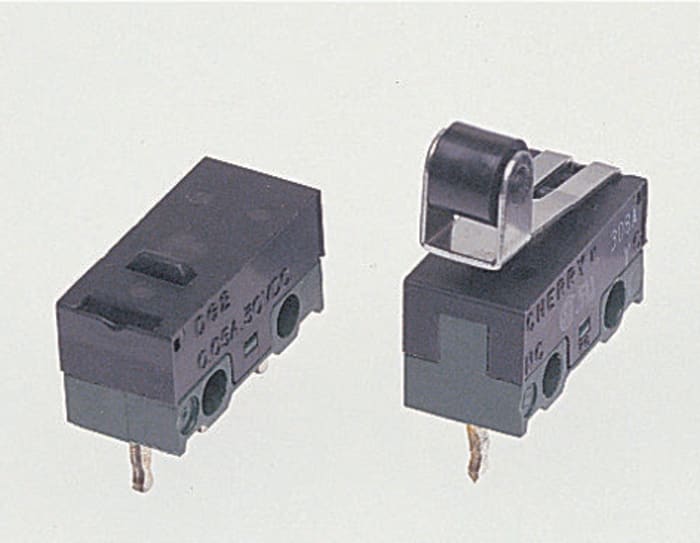

ZF Roller Lever Micro Switch, PCB Terminal, 3 A @ 125 V ac, SPDT
Technical documents
Specifications
Brand
ZFActuator Type
Roller Lever
Terminal Type
PCB
Contact Current Rating
3 A @ 125 V ac
Contact Configuration
SPDT
Operating Force
0.59 N
Minimum Operating Temperature
-25°C
Maximum Operating Temperature
+85°C
Contact Material
Silver Alloy
Mechanical Life
1000000Operations
Operating Temperature Range
-25 → +85°C
Product details
Miniature PCB Microswitch
Available with a choice of actuators
Switch body moulded from UL94V-0 material
SPDT silver-plated wiping contacts
Operating temperature range: -25 to +85°C
Approvals
UL recognised component, CSA certified
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
€ 26.84
€ 5.369 Each (In a Pack of 5) (ex VAT)
5
€ 26.84
€ 5.369 Each (In a Pack of 5) (ex VAT)
Stock information temporarily unavailable.
5
Stock information temporarily unavailable.
| quantity | Unit price | Per Pack |
|---|---|---|
| 5 - 45 | € 5.369 | € 26.84 |
| 50 - 245 | € 4.921 | € 24.60 |
| 250 - 495 | € 4.154 | € 20.77 |
| 500 - 1245 | € 3.941 | € 19.71 |
| 1250+ | € 3.658 | € 18.29 |
