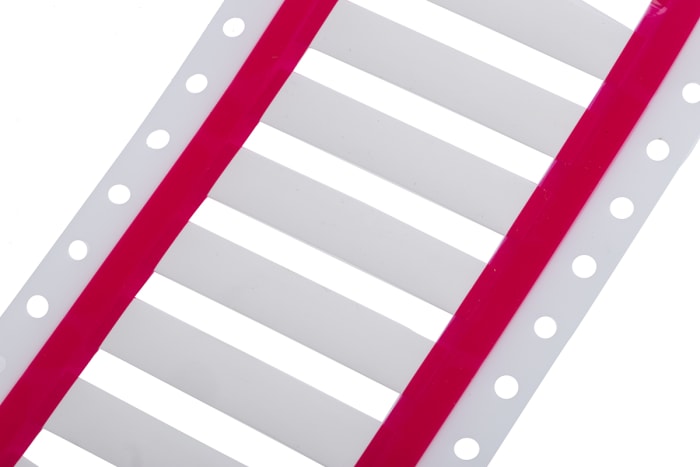

TE Connectivity Heat Shrink Cable Marker, 2.31 → 5.46mm Cable
Technical documents
Specifications
Brand
TE ConnectivityAffixing Method
Heat Shrink
Minimum Cable Diameter
2.31mm
Maximum Cable Diameter
5.46mm
Length
50.8mm
Width
90.18 mm
Quantity
1000
Material
Polyolefin
Minimum Operating Temperature
-30°C
Maximum Operating Temperature
+105°C
Cable Diameter Range
2.31 → 5.46mm
Resistant To
Abrasions, Cleaning Solvents, Industrial Fluids
Operating Temperature Range
-30 → +105 °C
Tensile Strength
8MPa
Product details
Commercial Identification Marker (Ready Print)
Thin wall, flame retarded radiation cross-linked polyolefin heat-shrinkable tubing, assembled as cut sleeves in a “ladder” configuration. Ideal for marking wires and cables by computer-based printing onto sleeves. The sleeves can also provide terminal insulation and strain relief.
Features and benefits
• Ready print markers are designed to meet the wire identification needs of commercial and industrial manufacturers.
• 3:1 shrink ratio
• Flame-retardant
• Resistance against abrasion, aggressive cleaning solvents and industrial fluids
Standards
UL224
P.O.A.
1
P.O.A.
Stock information temporarily unavailable.
1
Stock information temporarily unavailable.
