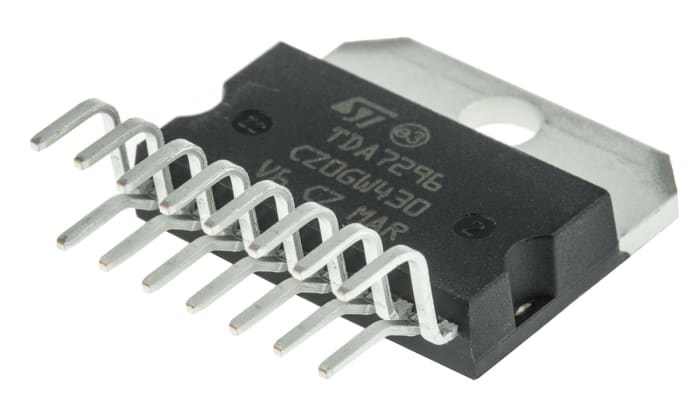

DMOS Audio Amp,60W,Mute/Stby,TDA7296

RS Stock No.: 218-670Brand: STMicroelectronicsManufacturers Part No.: TDA7296
View all in Audio Amplifier ICs

Technical documents

Specifications

Brand

STMicroelectronics

Amplifier Type

Class-AB

Output Type

1 Channel Mono

Maximum Power

60 W @ 8 Ω

Application

Speaker

Mounting Type

Through Hole

Power Supply Type

Dual

Package Type

MULTIWATT V

Pin Count

15

Input Signal Type

Differential

Output Signal Type

Single Ended

Typical Dual Supply Voltage

±12 V, ±15 V, ±18 V, ±24 V, ±28 V

Minimum Operating Temperature

0 °C

Maximum Operating Temperature

+70 °C

Dimensions

19.6 x 5 x 10.7mm

Product details

Audio Class-AB Power Amplifiers, STMicroelectronics

Mono, stereo and multi-channel solutions
Wide range of output power options

Audio Amplifiers, STMicroelectronics
