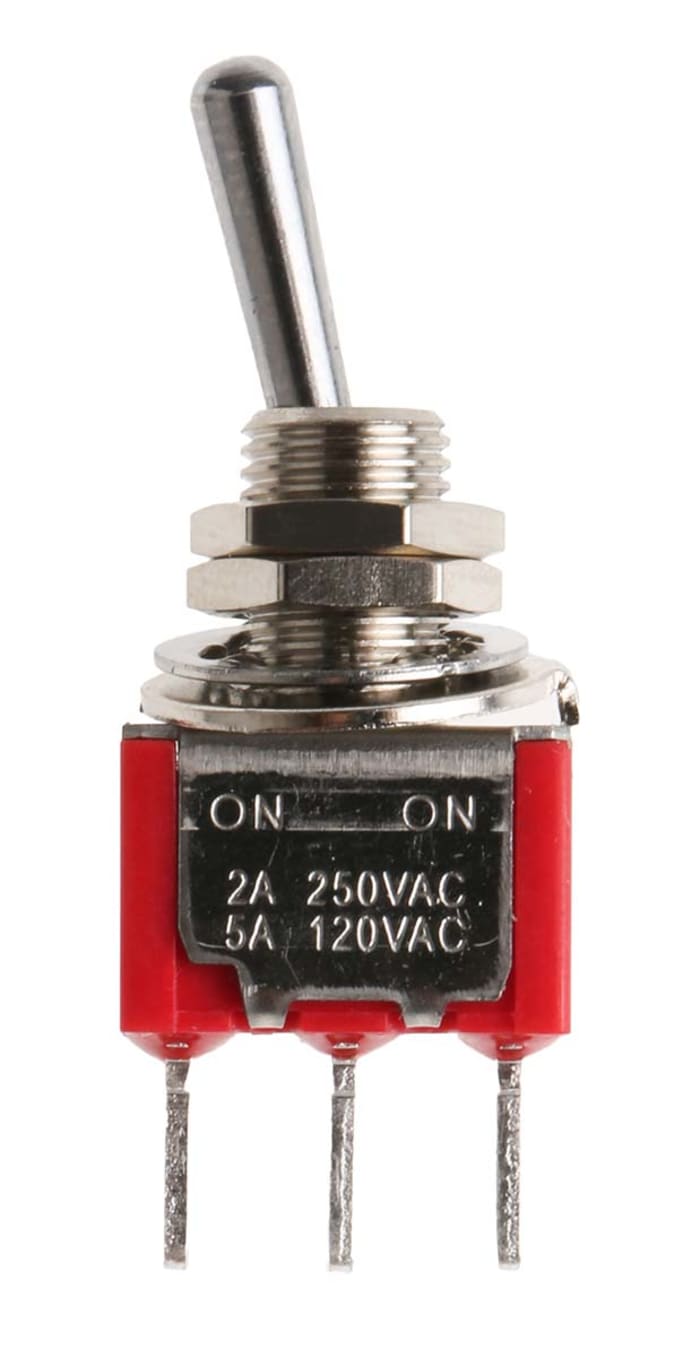

RS PRO Toggle Switch, PCB Mount, On-On, SPDT, Through Hole Terminal, 250V
Technical documents
Specifications
Brand
RS ProContact Configuration
SPDT
Switch Operation
On-On
Contact Current Rating
5 A (250 V ac/28 V dc),2 A (250 V ac)
Mounting Type
PCB
Terminal Type
Through Hole
Actuator Length
10.41mm
Actuator Material
Brass
Voltage Rating
250V
Contact Material
Copper Alloy
Contact Resistance
0.01Ω
Minimum Operating Temperature
-30°C
Operating Temperature Range
-30 → +85°C
Mechanical Life
40000Cycles
Maximum Operating Temperature
+85°C
Standards Met
RoHS & Lead Free
Country of Origin
China
Product details
Miniature Lockable Toggle Switches
Approvals
UL E187490
Stock information temporarily unavailable.
Please check again later.
£ 2.46
Each (ex VAT)
1
£ 2.46
Each (ex VAT)
1
Buy in bulk
| quantity | Unit price |
|---|---|
| 1 - 49 | £ 2.46 |
| 50 - 99 | £ 2.03 |
| 100 - 249 | £ 1.59 |
| 250+ | £ 1.55 |
