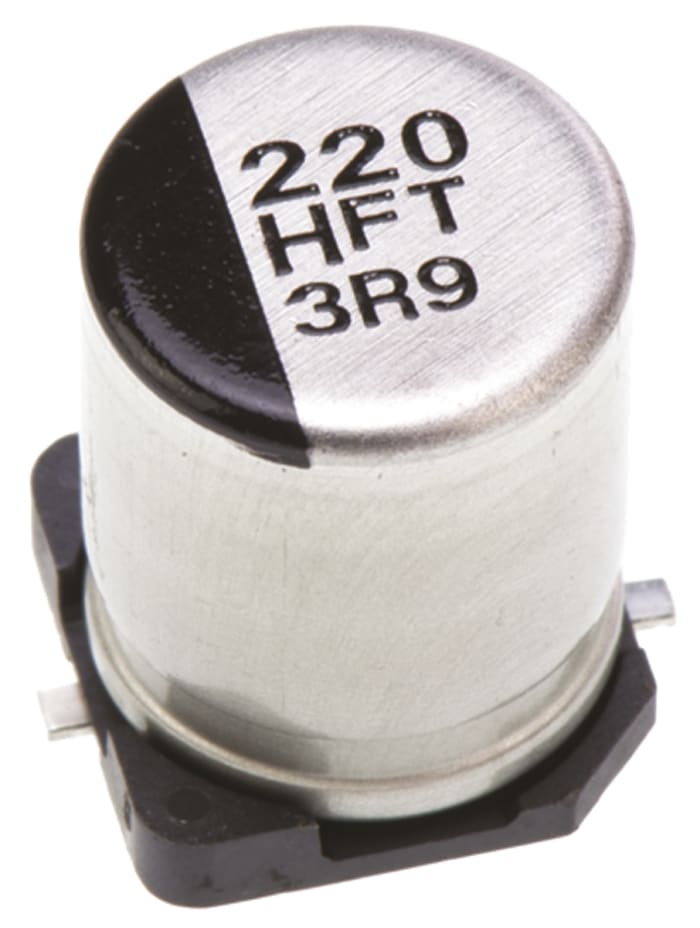

Panasonic 220 μF Aluminium Electrolytic Capacitor 50 V dc, Surface Mount Solder 500
Technical documents
Specifications
Brand
PanasonicCapacitance
220μF
Product Type
Aluminium Electrolytic Capacitor
Mount Type
Surface Mount
Packaging
Carrier Tape
Height
10.2mm
Polarity
Polar
Length
10.2mm
Package/Case
500
Minimum Operating Temperature
-55°C
Pin Count
2
Termination Type
Solder
Maximum Operating Temperature
105°C
Lifetime
2000 h
Standards/Approvals
RoHS
Tolerance ±
20%
Ripple Current
670mA
Leakage Current
110μA
Equivalent Series Resistance ESR
180mΩ
Series
FT
Automotive Standard
AEC-Q200
Dissipation Factor
200%
Country of Origin
Malaysia
Product details
FT High Temperature Reflow Series
Panasonic FT Series Type V capacitors offer a miniaturised solution and low ESR. They are one size smaller than the Panasonic FK Series. These electrolytic capacitors feature excellent endurance of 2000 hours at +105°C. FT Type V surface mount capacitors can withstand high reflow temperatures for extended periods.
AEC-Q200 qualified (some deviations apply)
Compact size
High reliability
Long life
High ripple current
Surface Mount
Applications
Panasonic FT Series Type V electrolytic capacitors are AEC-Q200 qualified and suitable for automotive applications such as climate control, wiper control, steering column and keyless entry. Other automotive uses include airbag control and navigation systems.
