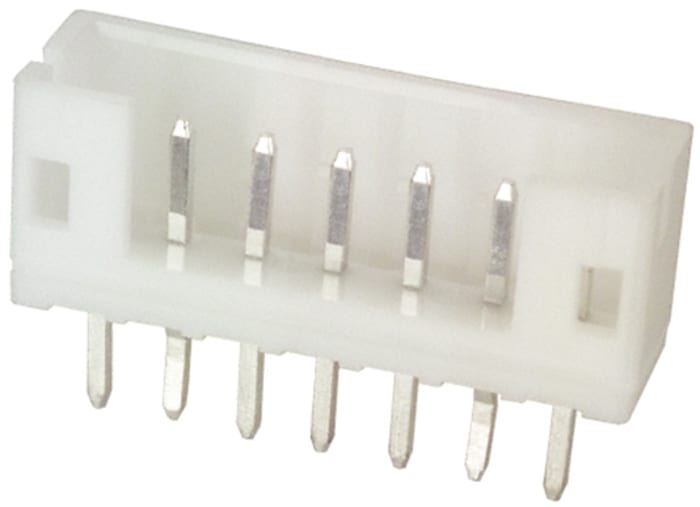

JST PH Series Straight Through Hole PCB Header, 7 Contact(s), 2.0mm Pitch, 1 Row(s), Shrouded
Technical documents
Specifications
Brand
JSTSeries
PH
Pitch
2.0mm
Number Of Contacts
7
Number Of Rows
1
Body Orientation
Straight
Shrouded/Unshrouded
Shrouded
Connector System
Wire to Board
Mounting Type
Through Hole
Termination Method
Solder
Contact Plating
Tin
Contact Material
Brass
Series Number
B7B
Current Rating
2.0A
Voltage Rating
100.0 V
Country of Origin
Indonesia
Product details
JST PH series Shrouded Through Hole Headers
A range shrouded headers for the JST PH series of low-profile 2.0mm pitch wire-to-board connectors. These compact through-hole mounting headers are ideal for high density PCB connections and offer high reliability at low cost. Both top-entry (straight) and side-entry (right-angle) types are available.
2.0mm Wire-to-Board Connector, JST PH Series
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
€ 3.84
€ 0.767 Each (In a Pack of 5) (ex VAT)
Standard
5
€ 3.84
€ 0.767 Each (In a Pack of 5) (ex VAT)
Standard
5
Stock information temporarily unavailable.
Please check again later.
| quantity | Unit price | Per Pack |
|---|---|---|
| 5 - 120 | € 0.767 | € 3.84 |
| 125 - 495 | € 0.472 | € 2.36 |
| 500 - 1245 | € 0.448 | € 2.24 |
| 1250 - 2495 | € 0.425 | € 2.12 |
| 2500+ | € 0.401 | € 2.01 |
