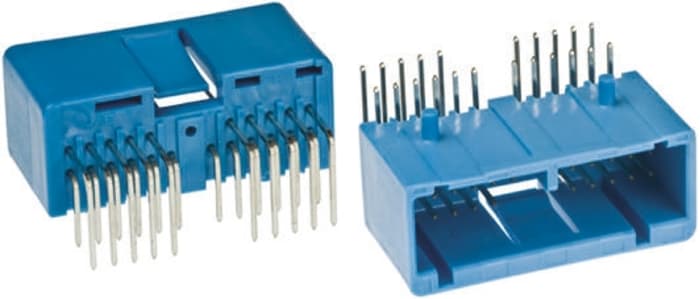

JAE IL-AG5 Series Right Angle Through Hole PCB Header, 22 Contact(s), 2.5mm Pitch, 2 Row(s), Shrouded

RS Stock No.: 690-9742Brand: JAEManufacturers Part No.: IL-AG5-22P-D3L2
brand-logo
View all in PCB Headers

Technical documents

Specifications

Brand

JAE

Series

IL-AG5

Pitch

2.5mm

Number Of Contacts

22

Number Of Rows

2

Body Orientation

Right Angle

Shrouded/Unshrouded

Shrouded

Connector System

Wire to Board

Mounting Type

Through Hole

Termination Method

Solder

Contact Plating

Tin

Contact Material

Brass

Current Rating

3.0A

Product details

90° Pin Header 2 Row Standard pin contact
