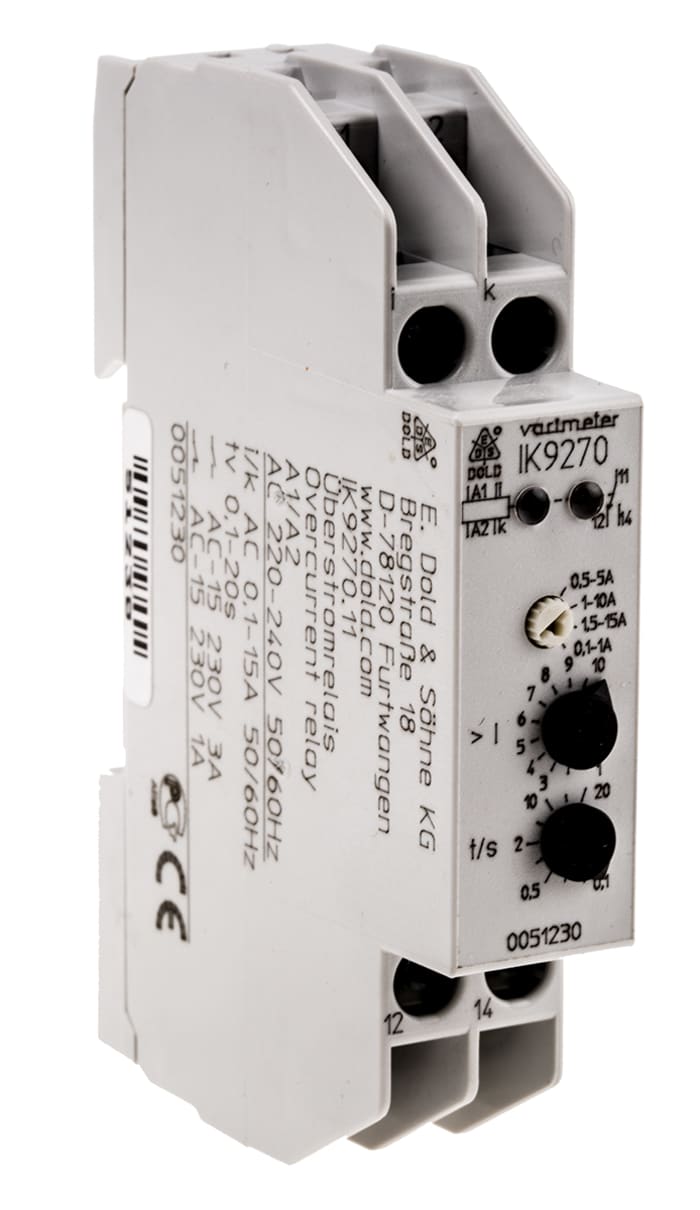

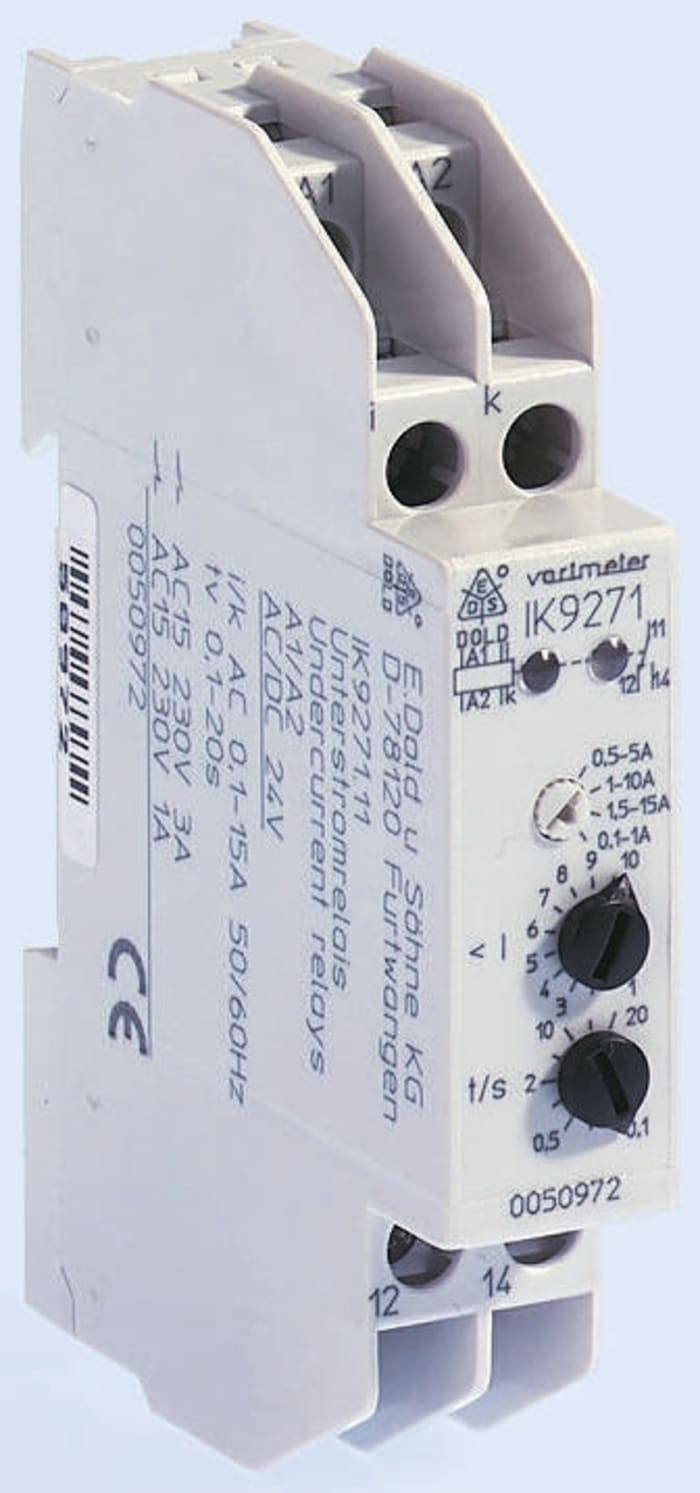

Dold Current Monitoring Relay, 1 Phase, DPDT, DIN Rail

RS Stock No.: 358-6973Brand: DoldManufacturers Part No.: IL9277.12 AC220-240V 0.1-15A Tv=0.1-20S
brand-logo
View all in Monitoring Relays

Technical documents

Specifications

Brand

Dold

Monitoring Application

Current

Electrical Phase

1

Contact Configuration

DPDT

Mounting Type

DIN Rail

Minimum Current Sensed

0.1A

Maximum Current Sensed

15A

Current Sensitivity

Overcurrent, Undercurrent

Time Delay

0.1 → 20s

Series

IL 9277

Current Range

0.1 → 1 A, 0.5 → 5 A, 1 → 10 A, 1.5 → 15A

Width

35mm

Operating Temperature Range

+60°C

Height

90mm

Length

61mm

Minimum Operating Temperature

-20°C

Maximum Operating Temperature

+60°C

Dimensions

61 x 35 x 90mm

Country of Origin

Germany

Product details

Over- and undercurrent relay, single phase, IL9277

Single phase over- and undercurrent monitoring in 3 phase and alternating current networks
4 measurement ranges from 0.1 → 15 A without an extra current transducer (programmable via bridges)
Adjustable 0.1 → 1 IN
Separate limit value settings for over- and undercurrent
Rest current principle
3 LED displays: over-, under- and normal current
Auxiliary circuit and measuring circuit galvanically isolated
Separate output relays for over- and undercurrent
Test current rated frequency 50/60 Hz
Continuous current 20 A / 50°
Accuracy ≤1%
Voltage range 0.8 → 1.1 UH
Contact 2 changeovers
Rated operating current type Continuous
Wire connection 2 x 2.5 mm2 solid or 2 x 1.5 mm2 with sleeve
LED indicators for over-, under- and normal current

Standards

IEC 255, VDE 0435 Part 303
