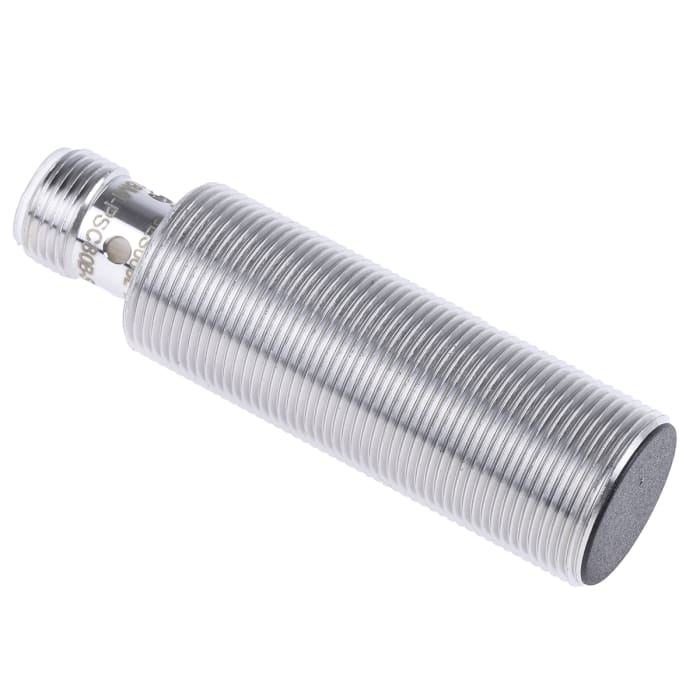

BALLUFF Barrel-Style Proximity Sensor, M18 x 1, 7.2 mm Detection, PNP-NO Output, 10 → 30 V dc, IP67
Technical documents
Specifications
Brand
BALLUFFThread Size
M18 x 1
Body Style
Barrel
Output Type
PNP-NO
Detection Range
7.2 mm
Terminal Type
M12 - 4 Pin
IP Rating
IP67
Supply Voltage
10 → 30 V dc
Length
65mm
Maximum dc Voltage
30V
Mounting Type
Flush Mount
Switching Current
200 mA
Shielding
Shielded
Maximum Switching Frequency
250Hz
Maximum Operating Temperature
+70°C
Housing Material
Steel
Short Circuit Overload Protection
Yes
Minimum Operating Temperature
-25°C
Reverse Polarity Protection
Yes
Standards Met
CE, cULus
Country of Origin
Hungary
Product details
BES 3 / 4Wire M18 Inductive Proximity Sensor
This range of M18 cylindrical inductive proximity sensors from the BALLUFF BES series are designed to be used in a wide vareity of metal detection applications with in industrial environments.
Pre cabled or connector
Flush shielded or non-flush unshielded
3 wire DC configuration
P.O.A.
1
P.O.A.
1
Stock information temporarily unavailable.
Please check again later.
