APEM 6 Way Through Hole DIP Switch SPST, Raised Actuator Slide Actuator
Technical documents
Specifications
Brand
ApemNumber of Positions
6
Mounting Type
Through Hole
Contact Material
Phosphor Bronze (Moving Contact)
Contact Configuration
SPST
Package Style
DIP
Actuator Type
Raised Actuator Slide
Contact Current Rating
100 (Non-Switching) mA @ 50 Vdc, 25 (Switching) mA @ 24 V dc
Maximum Operating Temperature
+85°C
Minimum Operating Temperature
-20°C
Operating Temperature Range
-20 → +85°C
Voltage Rating
24 V dc, 50V dc
Dielectric Strength
500V ac
Country of Origin
China
Product details

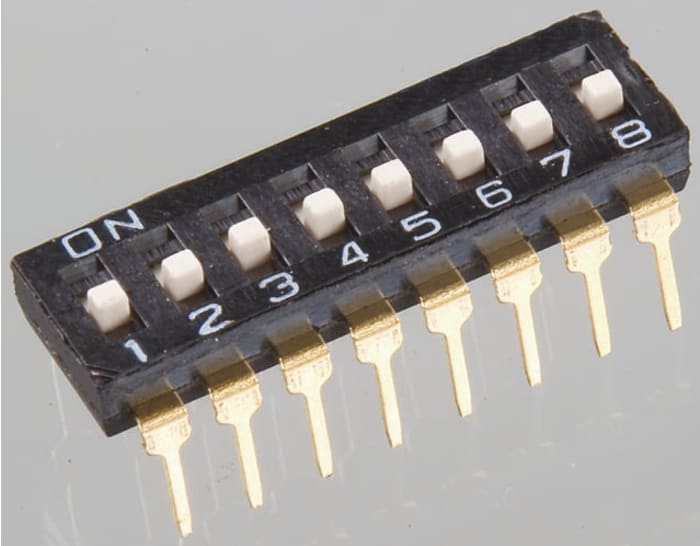

Apem DIP Switch - IKD Series
The low profile IKD DIP switch is designed for reliable operation with positive detent action. Available 1 to 12 poles, surface mount or through hole mounting
Self cleaning wiping contacts
Gold plated terminals
SMT Gull wing or J bend
Process compatible IP reflow and wave solderable
Dual-In-Line Switches
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
€ 39.98
€ 1.428 Each (In a Tube of 28) (ex VAT)
28
€ 39.98
€ 1.428 Each (In a Tube of 28) (ex VAT)
28
Stock information temporarily unavailable.
Please check again later.
| quantity | Unit price | Per Tube |
|---|---|---|
| 28 - 168 | € 1.428 | € 39.98 |
| 196 - 308 | € 1.333 | € 37.34 |
| 336 - 532 | € 1.239 | € 34.69 |
| 560 - 812 | € 1.168 | € 32.71 |
| 840+ | € 1.121 | € 31.39 |
