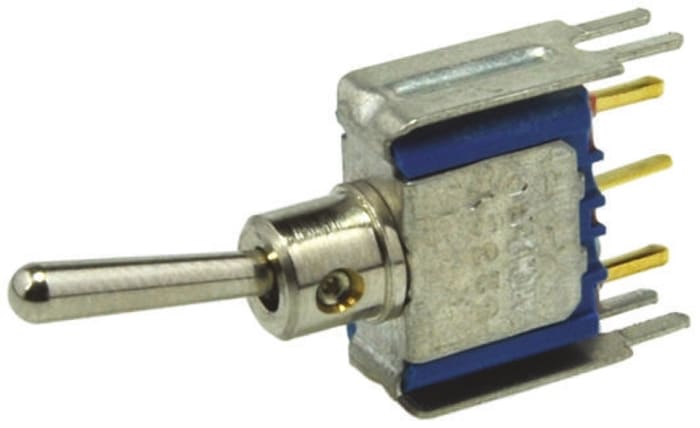

APEM Toggle Switch, PCB Mount, On-On, SPST, Through Hole Terminal

RS Stock No.: 103-5675Brand: APEMManufacturers Part No.: SY236/13
brand-logo
View all in Toggle Switches

Technical documents

Specifications

Brand

Apem

Contact Configuration

SPST

Switch Operation

On-On

Contact Current Rating

400 mA @ 20 V dc

Mounting Type

PCB

Terminal Type

Through Hole

Actuator Length

13.3mm

Actuator Material

Brass

Contact Resistance

0.01Ω

Minimum Operating Temperature

-20°C

Operating Temperature Range

-20 → +85°C

Maximum Operating Temperature

+85°C

Country of Origin

France

Product details

Vertical mounting switches

Miniature Lockable Toggle Switches

Approvals

UL E187490

Ideate. Create. Collaborate

JOIN FOR FREE

No hidden fees!

design-spark
design-spark
  • Download and use our DesignSpark software for your PCB and 3D Mechanical designs
  • View and contribute website content and forums
  • Download 3D Models, Schematics and Footprints from more than a million products
Click here to find out more

Stock information temporarily unavailable.

Please check again later.

Stock information temporarily unavailable.

€ 10.17

Each (ex VAT)

APEM Toggle Switch, PCB Mount, On-On, SPST, Through Hole Terminal

€ 10.17

Each (ex VAT)

APEM Toggle Switch, PCB Mount, On-On, SPST, Through Hole Terminal
Stock information temporarily unavailable.

Buy in bulk

quantityUnit price
1 - 24€ 10.17
25 - 49€ 8.45
50 - 99€ 7.88
100 - 249€ 7.45
250+€ 6.90
