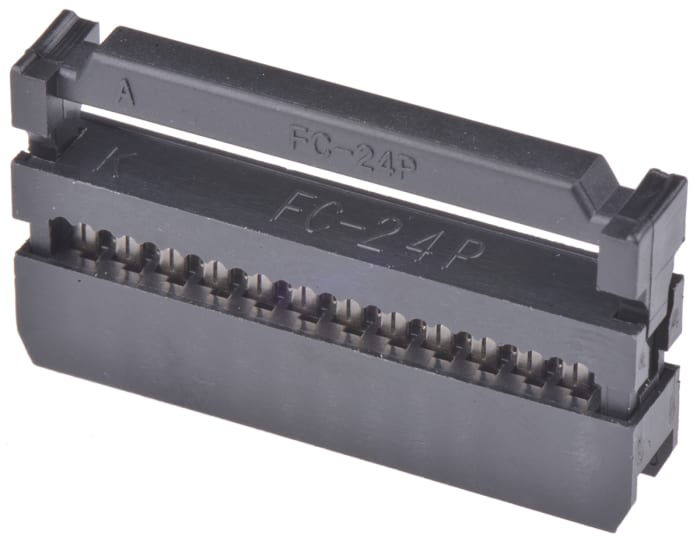

HARTING 24-Way IDC Connector Socket for Cable Mount, 2-Row

RS Stock No.: 787-4700Brand: HARTINGManufacturers Part No.: 09185246813
brand-logo
View all in IDC Connectors

Technical documents

Specifications

Brand

Harting

Number Of Contacts

24

Number Of Rows

2

Gender

Female

Pitch

2.54mm

Mounting Type

Cable Mount

Body Orientation

Right Angle

Termination Method

IDC

Current Rating

2A

Contact Plating

Gold

Series

SEK-18

Voltage Rating

320.0 V ac

Housing Material

PBT

Country of Origin

China

Product details

Bump Polarised Socket

A range of Bump Polarized Sockets having Open End Covers with or without Strain Relief:
• Harting part numbers ending in xxxxxxxx803 have no Strain Relief Clamp
• Harting part numbers ending in xxxxxxxx813 have Strain Relief Clamp
